Welcome to VOID AR
VOID AR is devoted to the continuous development of new AR technology in order to fulfill the AR developers with ultimate imaginaries, creativities and more high quality AR contents.
You can learn to use our products from here if you are trying VOID AR for the first time.
VOID CLOUD(VideoPlayback)
Part 1. Introduction
VOID CLOUD ( VideoPlayback ) is to store the recognition data ( image target and video path) in cloud server, to run the recognition algorithm in cloud, to achieve Url video playback.
Part 2. Reading Guidelines
This tutorial is mainly to introduce how to process in Unity environment.
We assume that readers have basic experience in app development and unity usage.
For more unity3d usage information, please visit the official website of unity3d documentation.
Part 3. Development Environment
You need to install and prepare your development environment as below before handling the models:
OS
- Windows 7 or higher
- OS X 10.10 or higher
Unity Version
Unity3D Version: 5.2.x - 5.6.x ( 32bit or 64bit ) , 2017.1
We recommends Unity3D 5.4 or above for better renderring quality.
Download: https://unity3d.com/cn/get-unity/download/archive
Unity3D of this tutorial: 5.5.2 ( 64bit )
Part 4. Implementation process

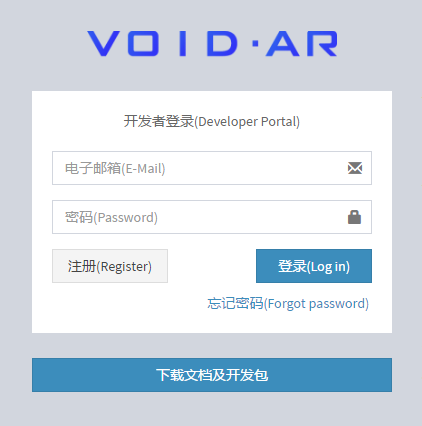

Step 1. Register and login the cloud platform
Open the cloud platform url, and register an accout and login.
Website Url:http://cloud.voidar.net
Step 2. Create Database for Cloud Recognition
Go to the Cloud plaform, the new user need to create a new database for recognition data management.

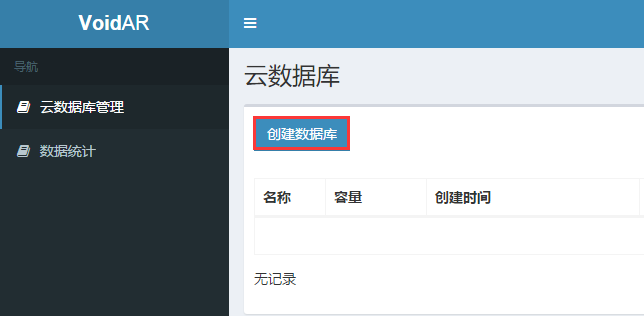

Click [ 创建数据库 ] (Create Database).
One database is allowed for each account.

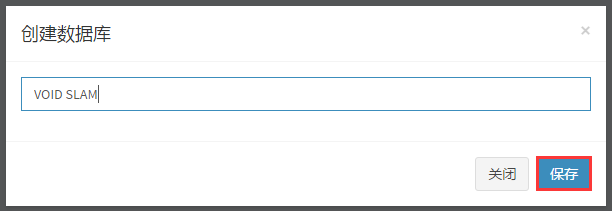

Fill in your database name from poping interface (Chinese character is accepted).
This tutorial will set the name of the database as “VOID SLAM”.
After database setup, click [ 保存 ] for save.

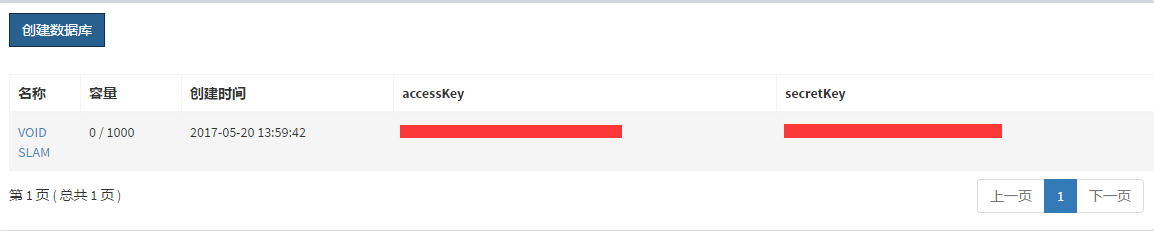

After that, you will get your “Accsess Key” and “Secret Key” for later use.
Step 3. Cloud Resources management

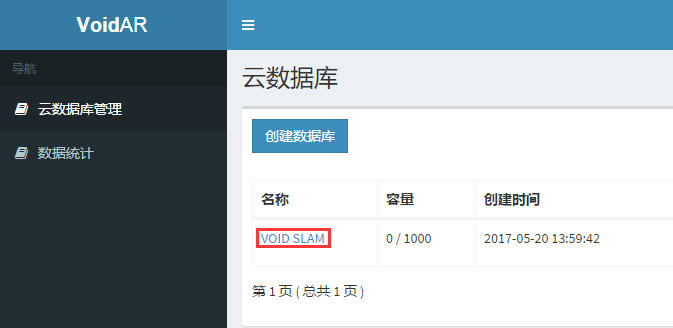

Click the “VOID SLAM” in database management interface to go to the cloud resource management interface.

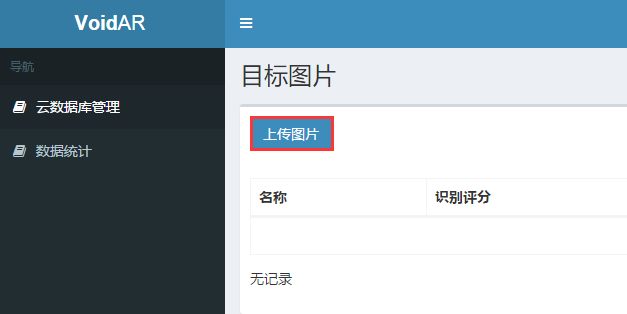

It is blank for new user. Click [ 上传图片 ] (Upload) button to add data.

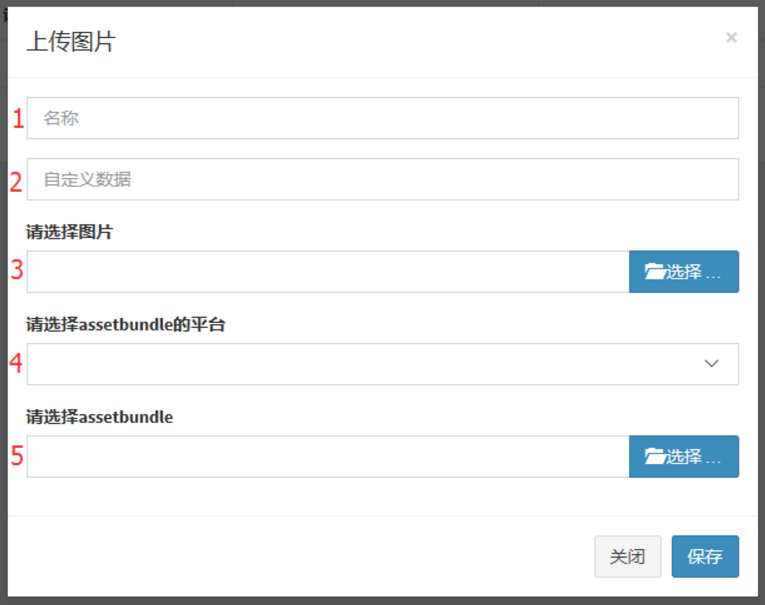

The interface of upload is like below:
1 Resource name ( Required, Chinese supported )
2 Customized data ( For cloud video playback, fill in the url of the video )
3 Upload the recognition image ( JPG only )
4 Select the assetbundle plaform ( For Cloud Image Recognition, skip for this tutorial )
5 Select the assetbundle file corresponding to the plaform ( For Cloud Image Recognition, skip for this tutorial )
Step 4. Open new Unity project

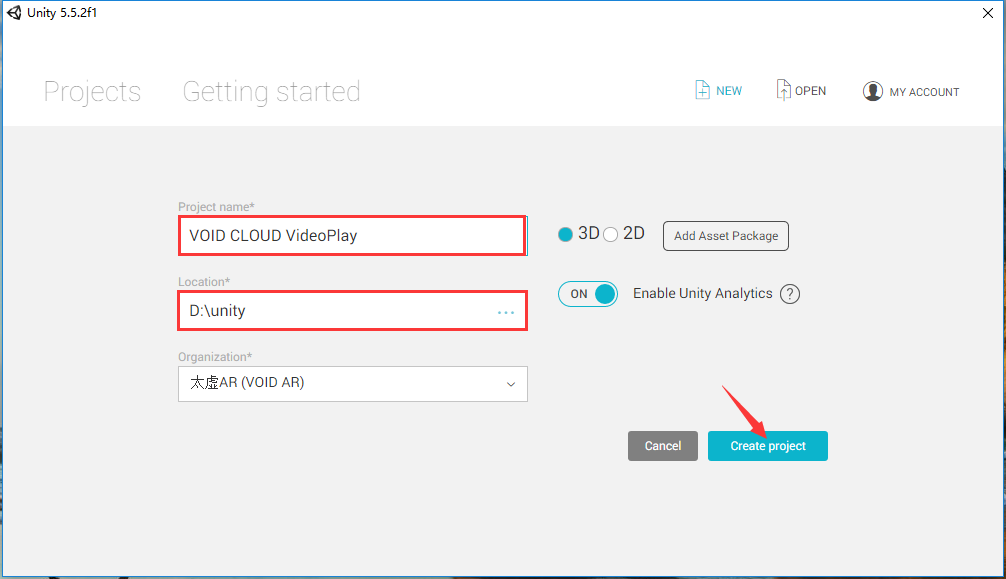

Open Unity with new project. Fill the Project name with “VOID CLOUD VideoPlay”, and select the location, and click [ Create project ].
Step 5. Import VOID AR SDK

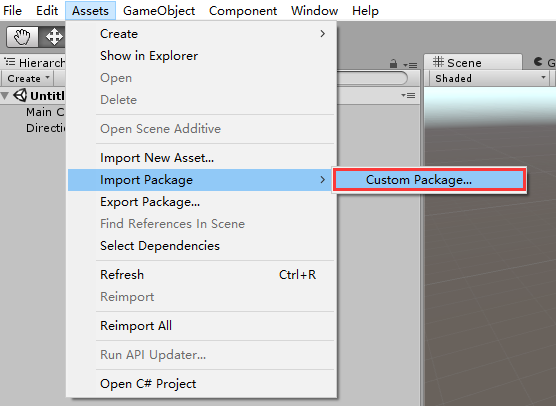

Select[ Assets ] -> [ Import Package ] -> [ Custom Package... ], import VOID AR SDK.

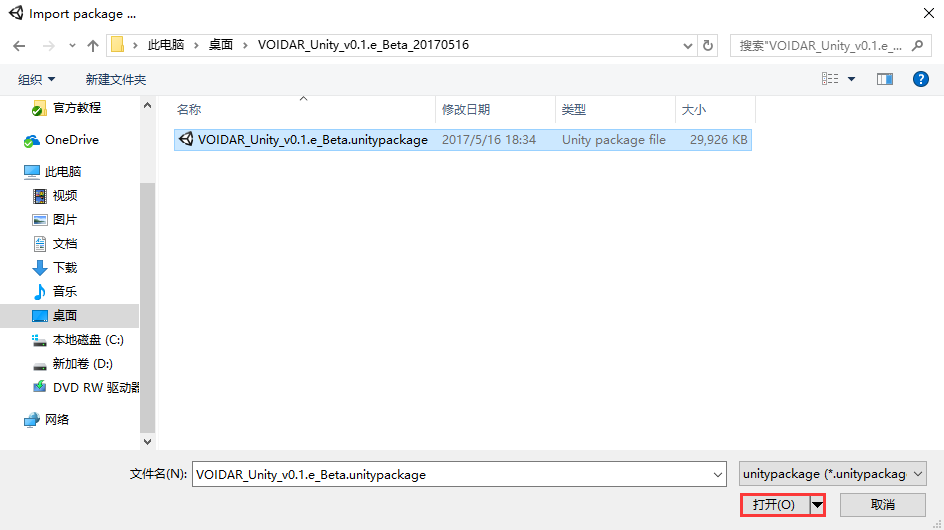

Select the downloaded SDK file (.unitypackage), and click [ Open ] button.

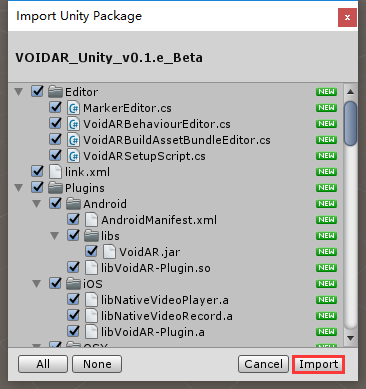

Click [ Import ] from the prompted window. It takes minutes during the import process.

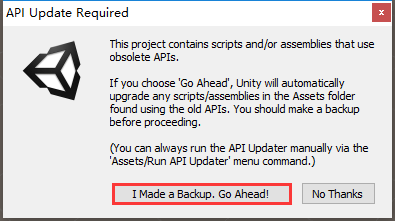

If there is a prompt window of “API Update Required” interface,please click [ I Made a Backup, Go Ahead! ].
Step 6. Delete Main Camera
When you open the Unity3D, you will see the new scene in default. The new scene has two GameObjects: a Main Camera and a Directional Light. We need to use the ARCamera from SDK, so please delete the default Camera.
Right click the "Main Camera” from the scene, and select [ Delete ].
Step 7. Drag the prefabs “ARCamera”

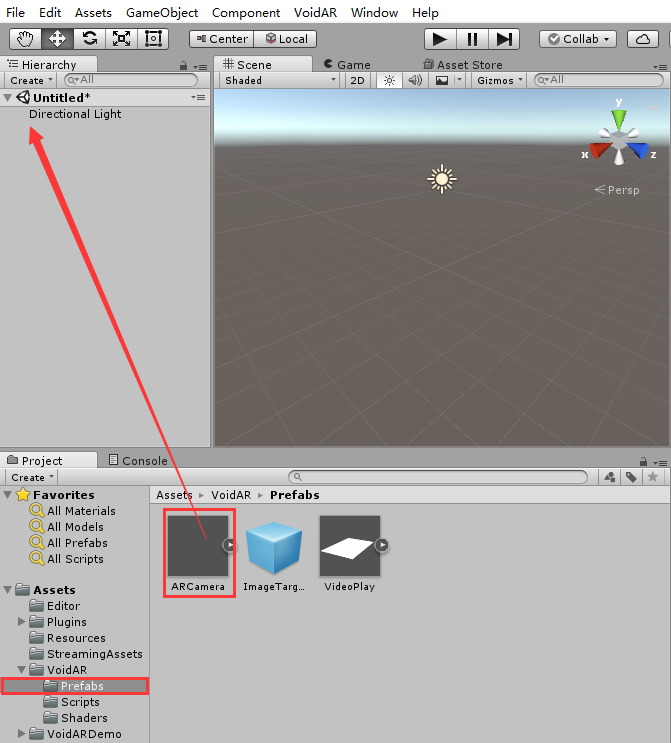

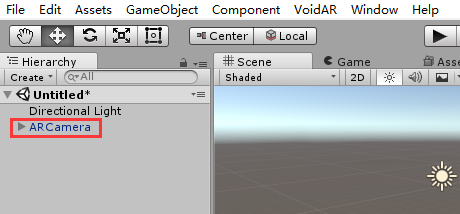

Expand the directory [ Assets ] -> [ VoidAR ] -> [ Prefabs ], and drag the prefabs “ARCamera” to the scene.
When you finish the process, it shows as below:
Step 8. ARCamera Setup

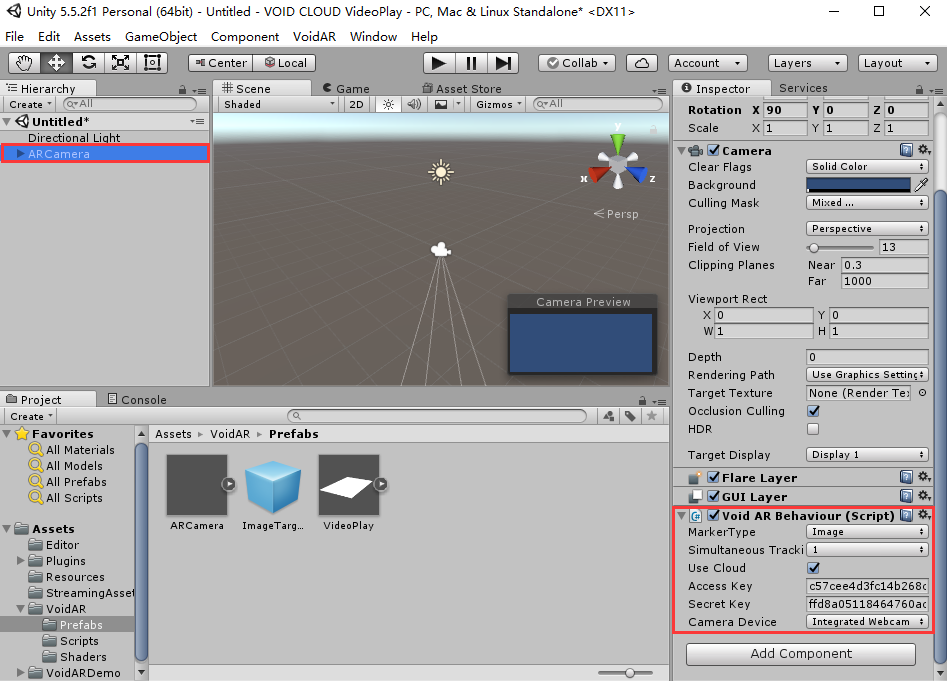

Select ARCamera, and look up in the “Inspector” area on the right side, setup “Void AR Behaviour (Script)” properties.
- Set MarkerType = "Image", stands for image target recognition
- Set Simultaneous Tracking = "1", stands for the tracking marker number is 1 at the same time
- Check “Use Cloud”
- AccessKey: your accessKey from your account ( See step 2 )
- SecretKey: your secretKey from your account ( See step 2)

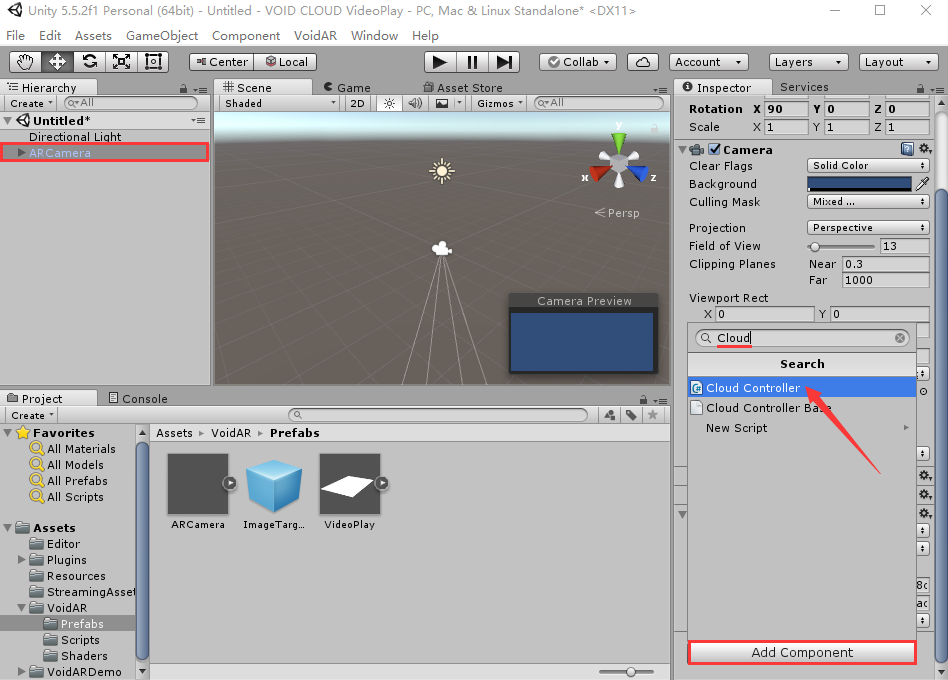

Select the “ARCamera”, click [ Add Compoent ] to add “Cloud Controller” script.
After binding, it shows as below:
Step 9. Setup parameters of Cloud VideoPlayback

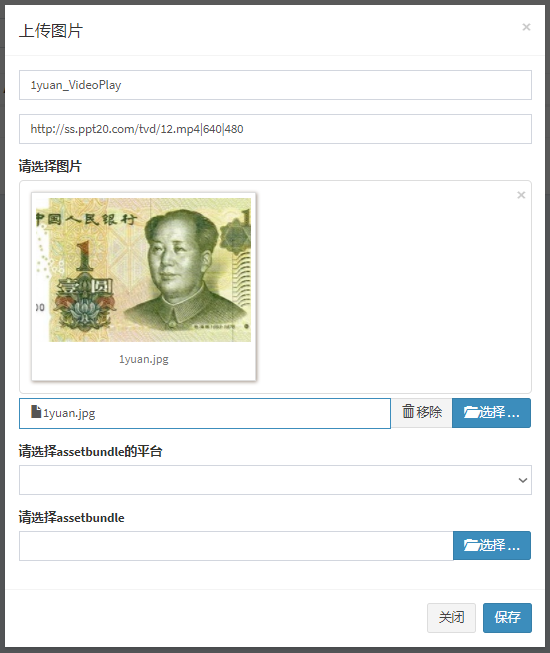

Back to the interface of Step 3, setup and upload the corresponding resource.
- Image filename = "1yuan_VideoPlay"
- Set customize data = “http://ss.ppt20.com/tvd/12.mp4|640|480”
The format is "Video Url | Video Width|Video Height", the Video Url is recommended for.mp4
- Upload Image file

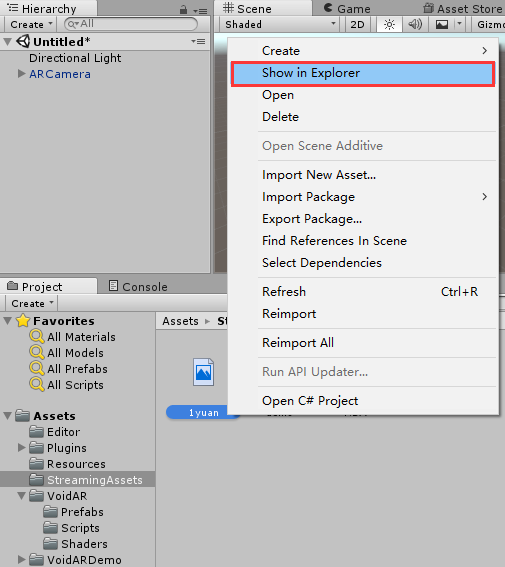

You can find the directory of the "image" file by checking in Unity and right click the "1yuan.jpg" and select [ show in Explorer ] to check as below:
After upload is done, click [ 保存 ] to save.

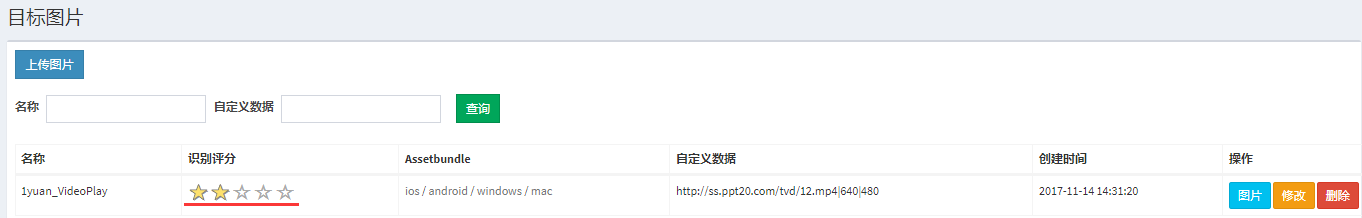

After uploading, there will be a new record in the cloud resource database with evaluation score. The higher score, the better quality of the image marker. Moreover, the corresponding platform will be highlighted.
Step 10. Save Scene
Select [ File] -> [ Save Scenes ] , click for saving your setup.

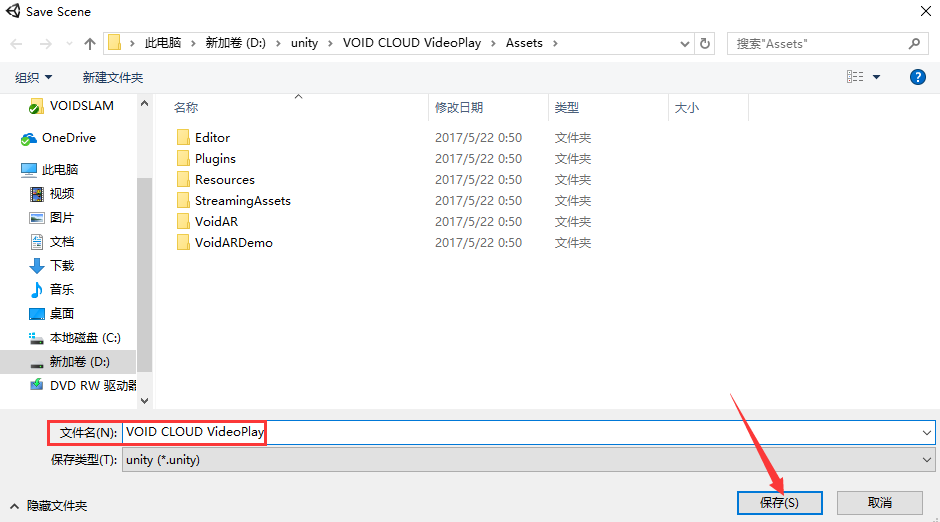

Setup the name as “VOID CLOUD VideoPlay”, and click [ save ] button.
Step 11. Debug

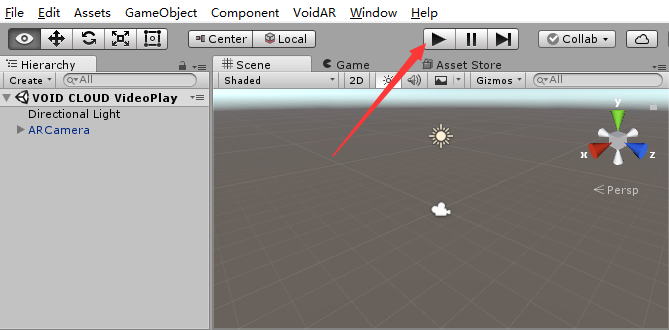

Make sure your PC is connected with a camera, and click [ Play ] button.
Current cloud video support Unity3D 5.6 and higher PC direct playback, less than 5.6 version through the following two points below:

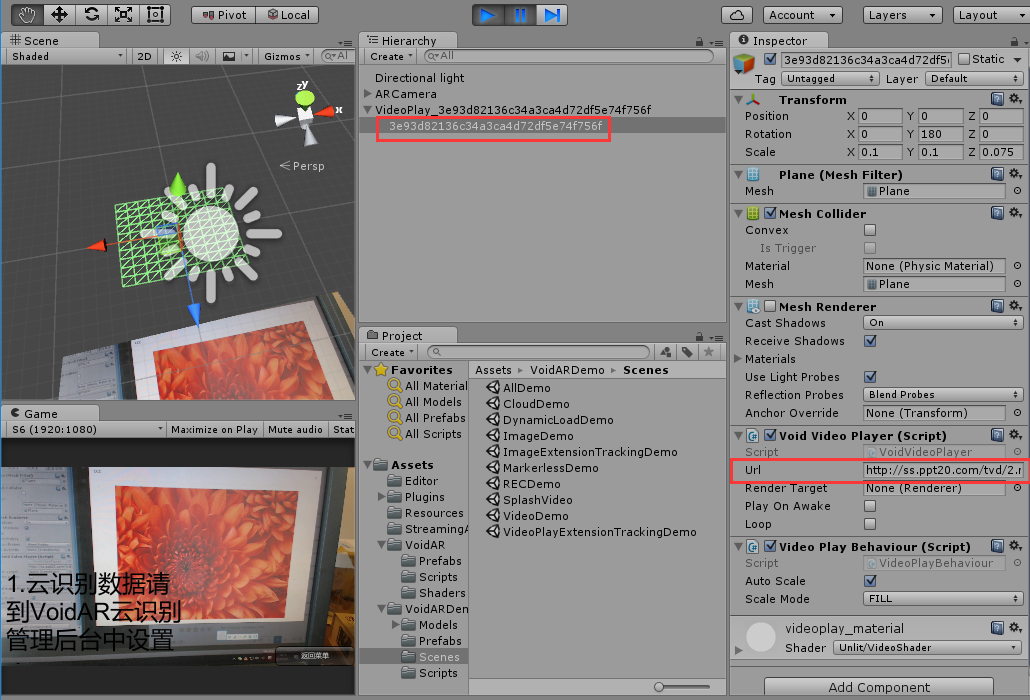

- Run in PC, you will see "VideoPlay_xxx" in Hierarchy in Unity when the recognition is successful;
- Expand the "VideoPlay_xxx" , and click the sub-object under it, you will see the URL value in its "Inspector" area.
Step 12. Build for Android or iOS
Build Process includes Android and iOS.
- Android

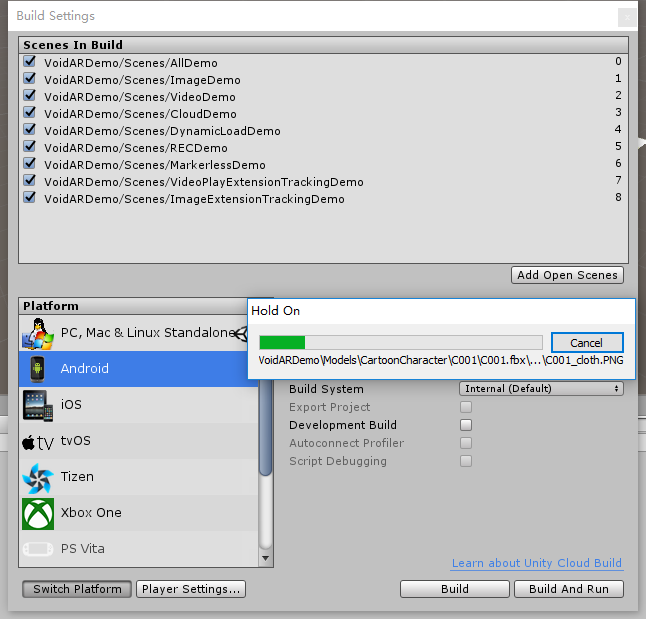

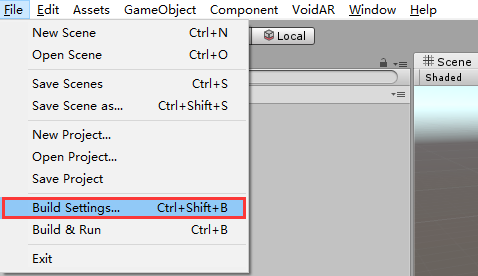

First, switch the PC platform to Android platform from [ File ] -> [ Build Settings... ].

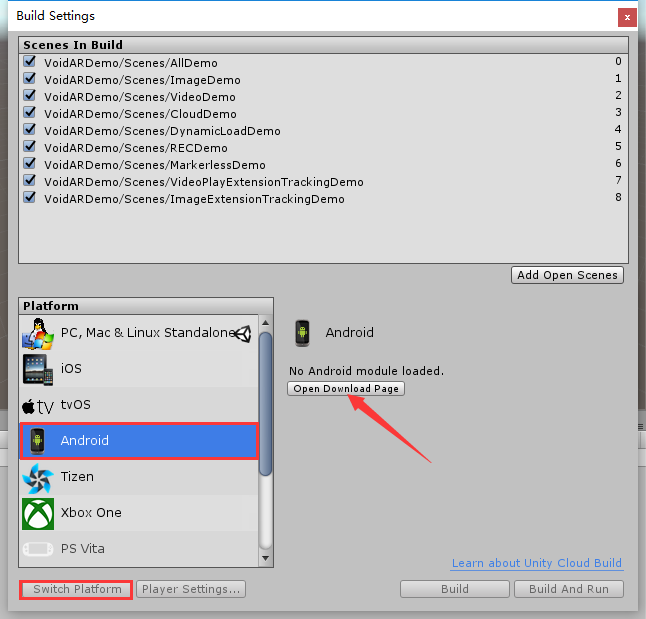

Select Android tag, if the [ Switch Platform ] button is grey, you need to download the Unity Android Support. Please click on the right side of the [ Open Download Page ] button, download and install.
Click [ Switch Platform ] button, switch the platform to Android.
After switch process, close the Build Settings interface first, and continue with packing.

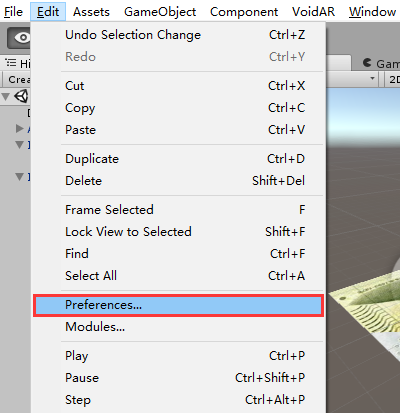

Select [ Edit ] -> [ Preferences... ], setup the preferences parameters.

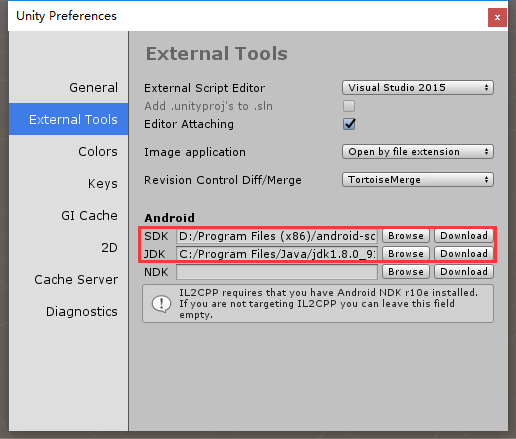

Select “External Tools” option, setup Android SDK and JDK。
If you do not have SDK and JDK, please click [ Download ] from the interface, it will guide you to download from the prompted website.
Or you can also download from links below:
SDK: https://developer.android.com/studio/index.html#Other
JDK: http://www.oracle.com/technetwork/java/javase/downloads/index.html
After the installation of SDK and JDK, you are able to setup their directory.

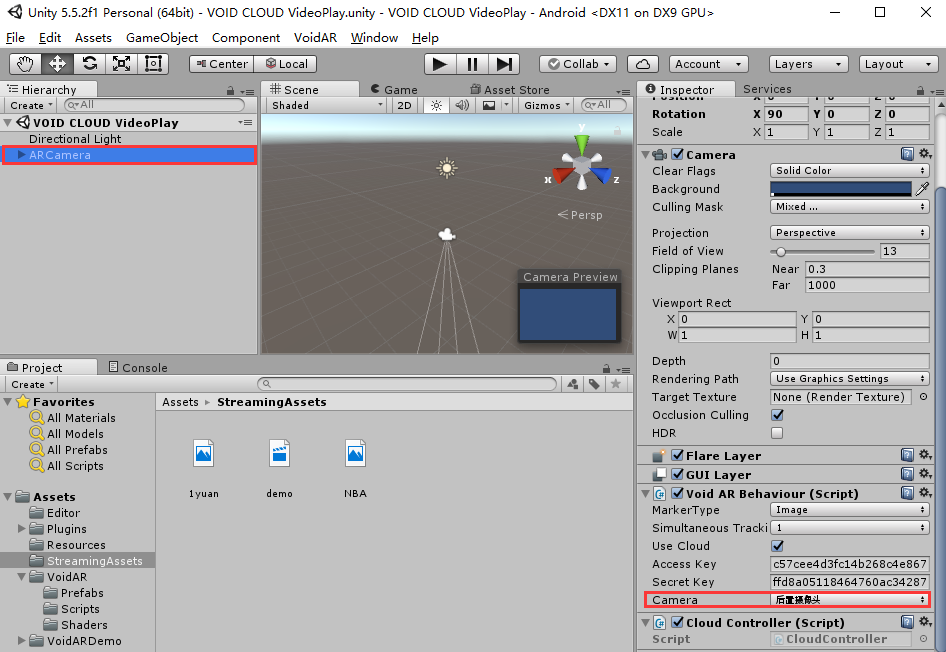

Select ARCamera, and look up in the “Inspector” area on the right side, setup “Void AR Behaviour (Script)” properties.
- Set Camera = "后置摄像头"(Rear camera)

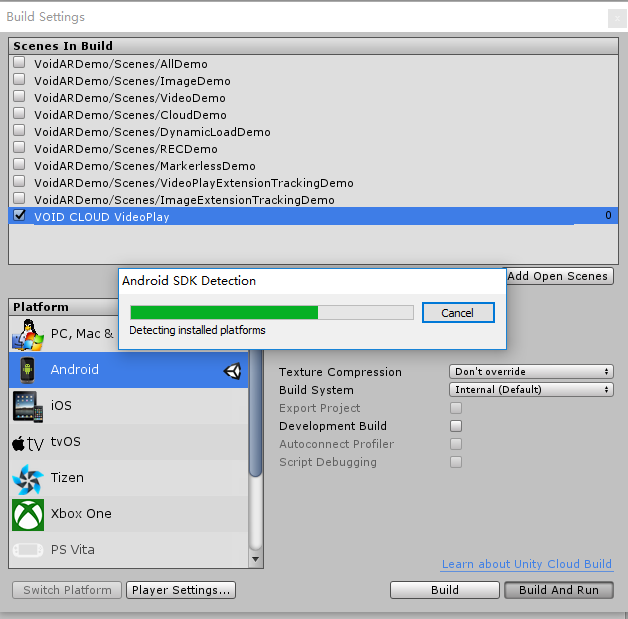

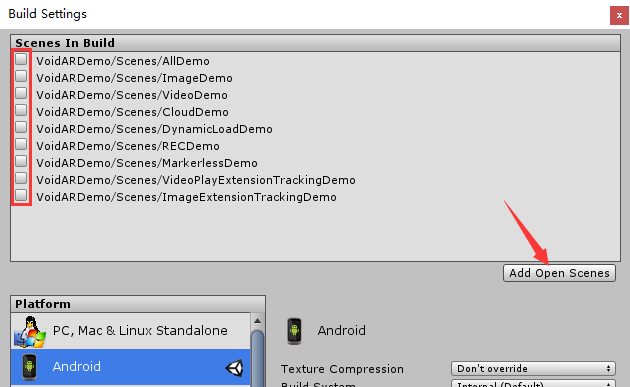

Select [ File ] -> [ Build Settings... ], cancel all defalt scenes, and click [ Add Open Scenes ] button to add current scene into the build area.

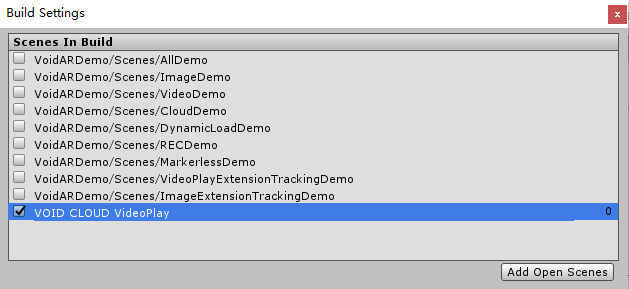

It shows as below:

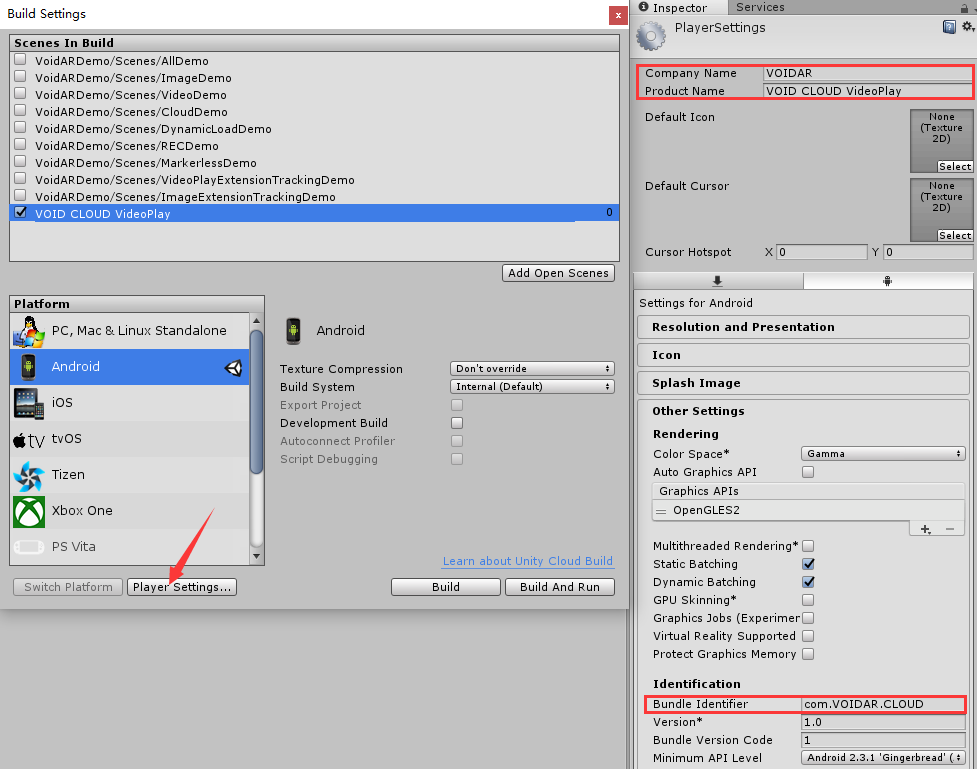

Click [ Player Settings... ] button, check the “Inspector” area, setup the parameters as below or as your needs.
- Set Company = "VOIDAR"
- Set Product Name = "VOID CLOUD VideoPlay"
- Set Bundle Identifier = "com.VOIDAR.CLOUD"
Caution: Bundle Identifier cannot use default, otherwise it fail to build.

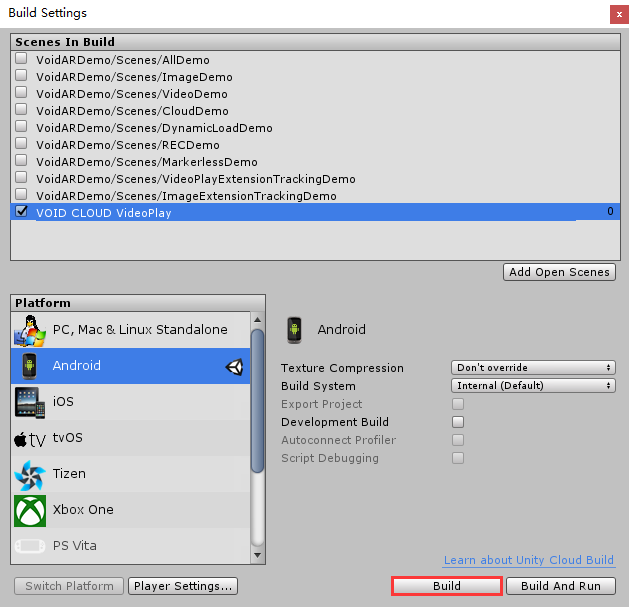

Finish the settings, and click [ Build ] button.

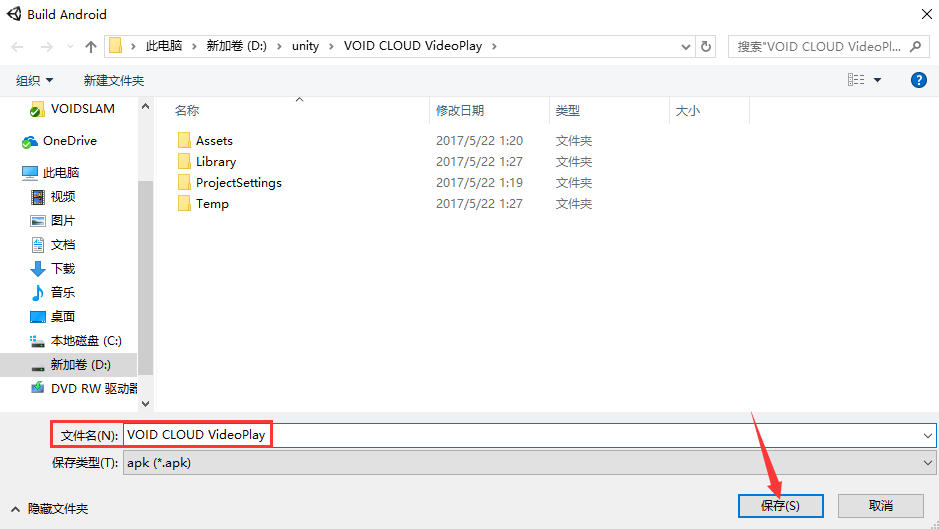

Set the file name as “VOID CLOUD VideoPlay”, and click [ save ] button to start building.
It takes minutes while building, please wait...
When the build is done, it will generate an apk file “VOID CLOUD VideoPlay.apk”. Android Build is completed.
- iOS
iOS Build requires Mac device ( such as MacBook Pro、MacBook、iMac、Mac mini etc. )
Switch the platform to iOS platform in Unity, and build Xcode project.
Caution: It is recommended to use Mac device to build Xcode project. If previously you make the project in Windows environment, you can copy the whole Unity directory of this project to Mac device and build for xcode project.
Lauch Unity and open the saved or copied VOID CLOUD VideoPlay project. ( Skip this step if project opened already )

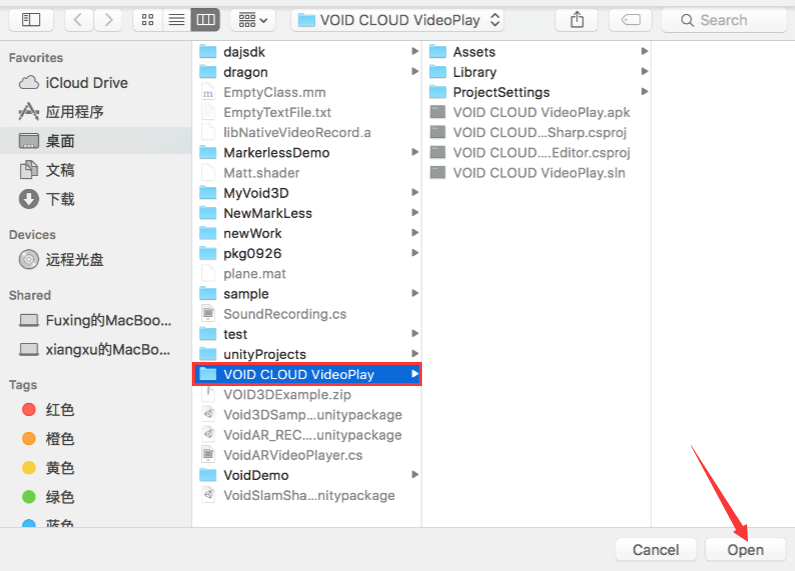

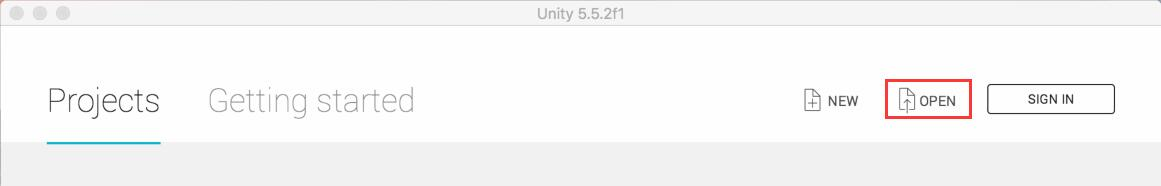

Click [ Open ] button to open the project.

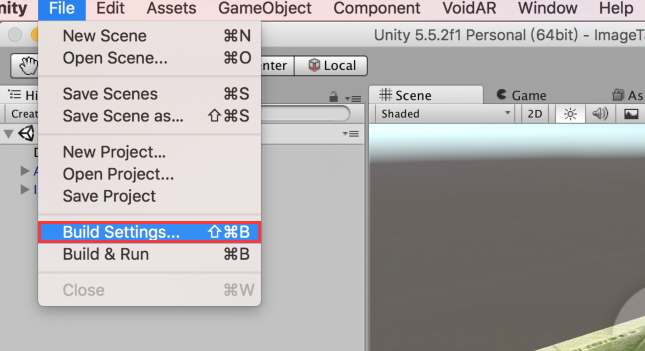

Switch to iOS platform in Unity, click [ File ] -> [ Build Settings... ].

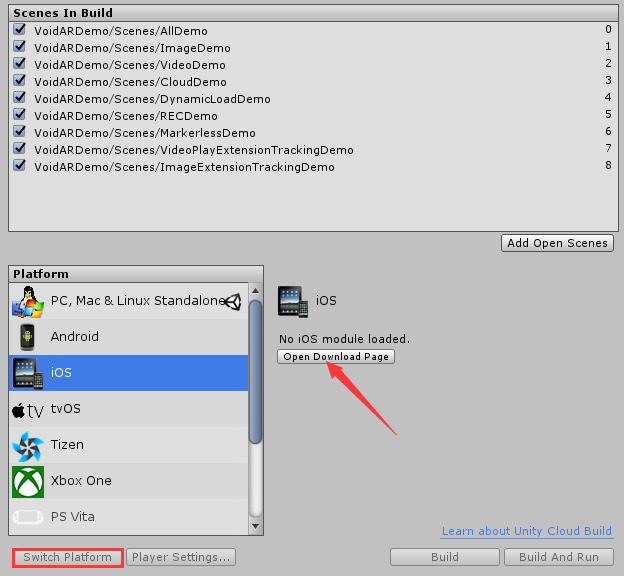

Select iOS tag, if the [ Switch Platform ] button is grey, you need to download the Unity iOS Support. Please click on the right side of the [ Open Download Page ] button, download and install.

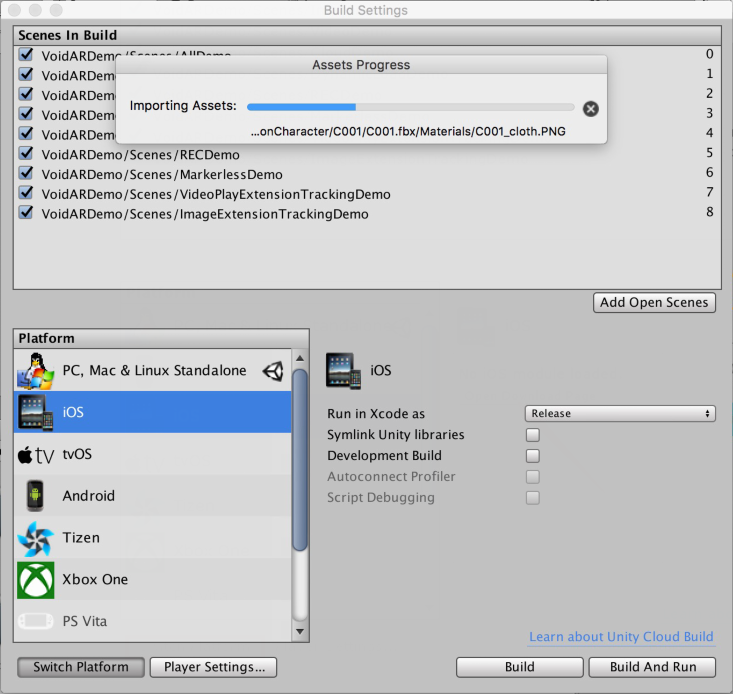

Click [ Switch Platform ] button, switch the platform to iOS.
Close the Build Settings interface after switch.

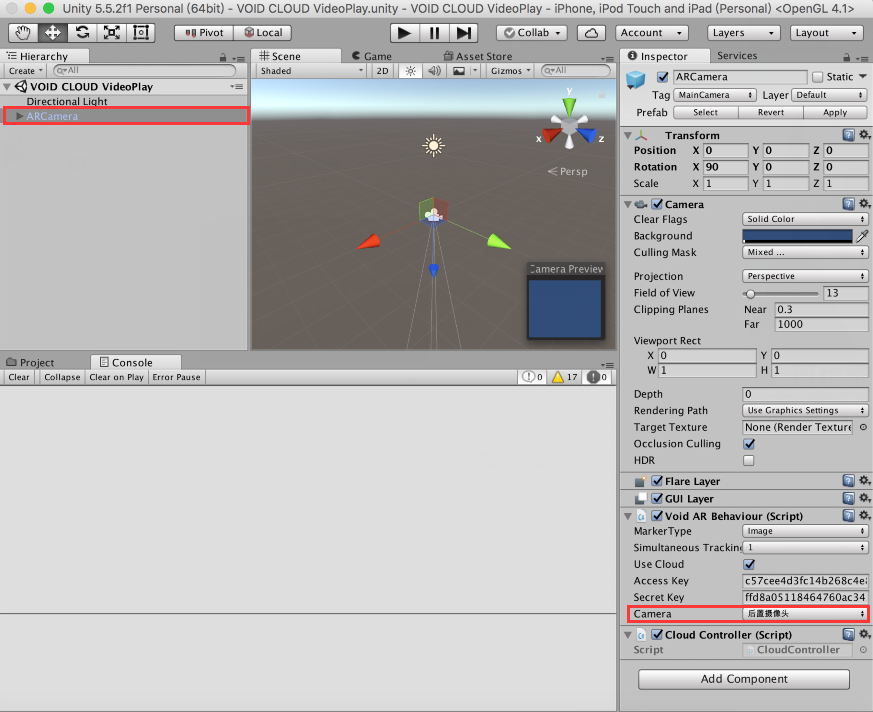

Select ARCamera, check the “Inspector” area on the right side, setup the "Void AR Behaviour (Script)” properties.
- Set Camera = "后置摄像头"(Rear Camera)

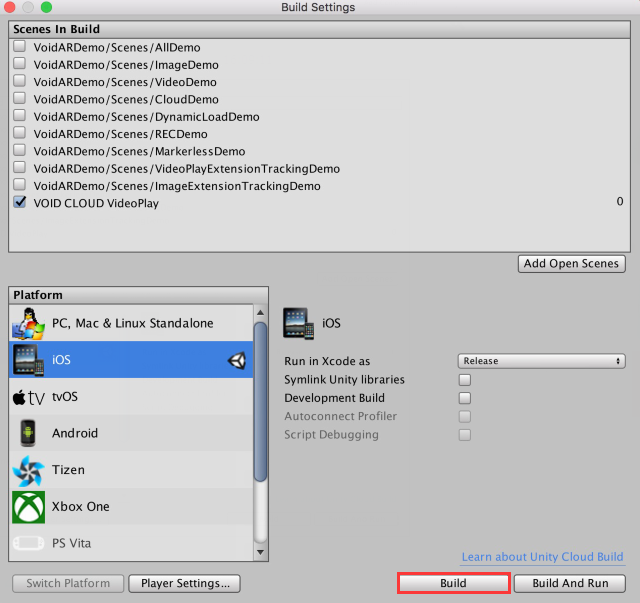

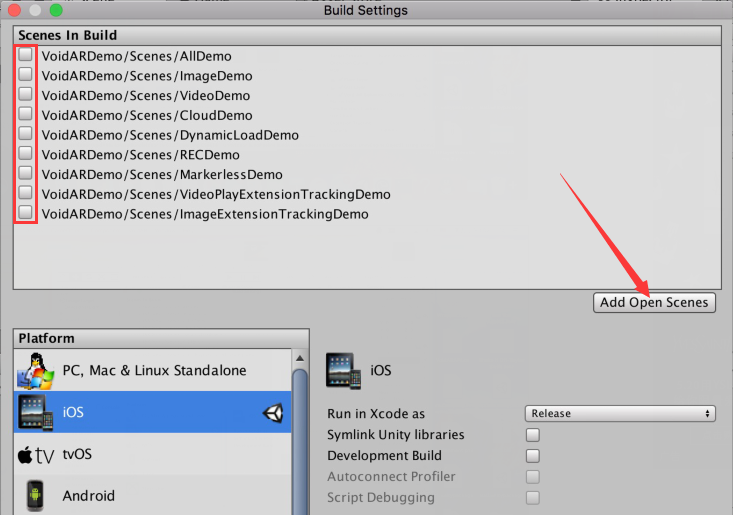

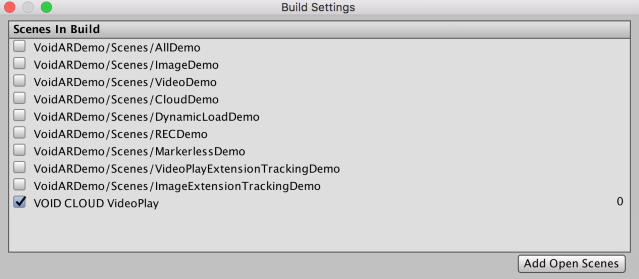

Select [ File ] -> [ Build Settings... ], cancel all defalt scenes, and click [ Add Open Scenes ] button to add current scene into the build area.
It shows as below:
Finish the settings, and click [ Build ] button.

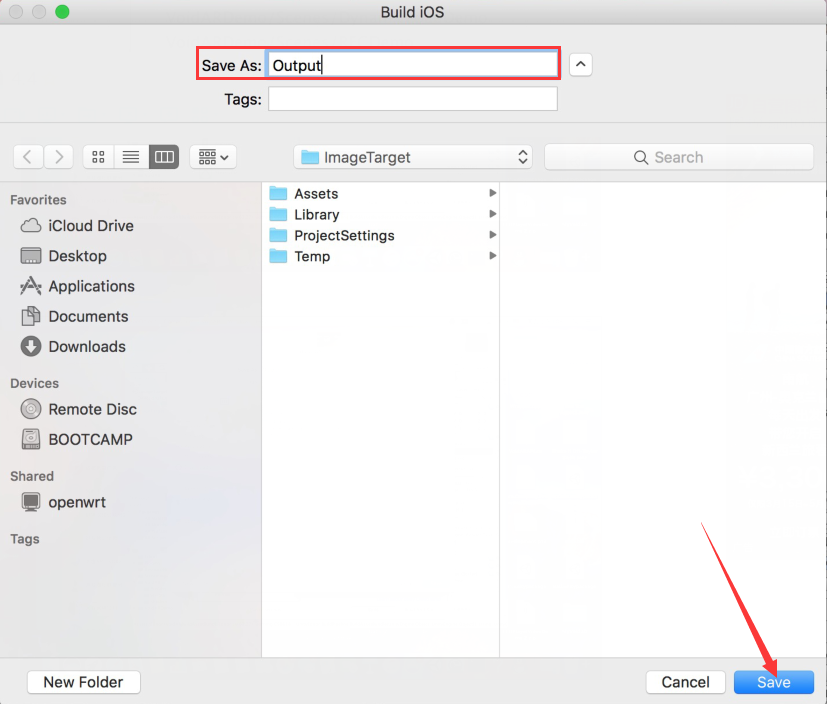

Set the project folder name “Output”, and click [ Save ].
Open the Xcode project.
Filling in your configurations: your certificate, deployment target

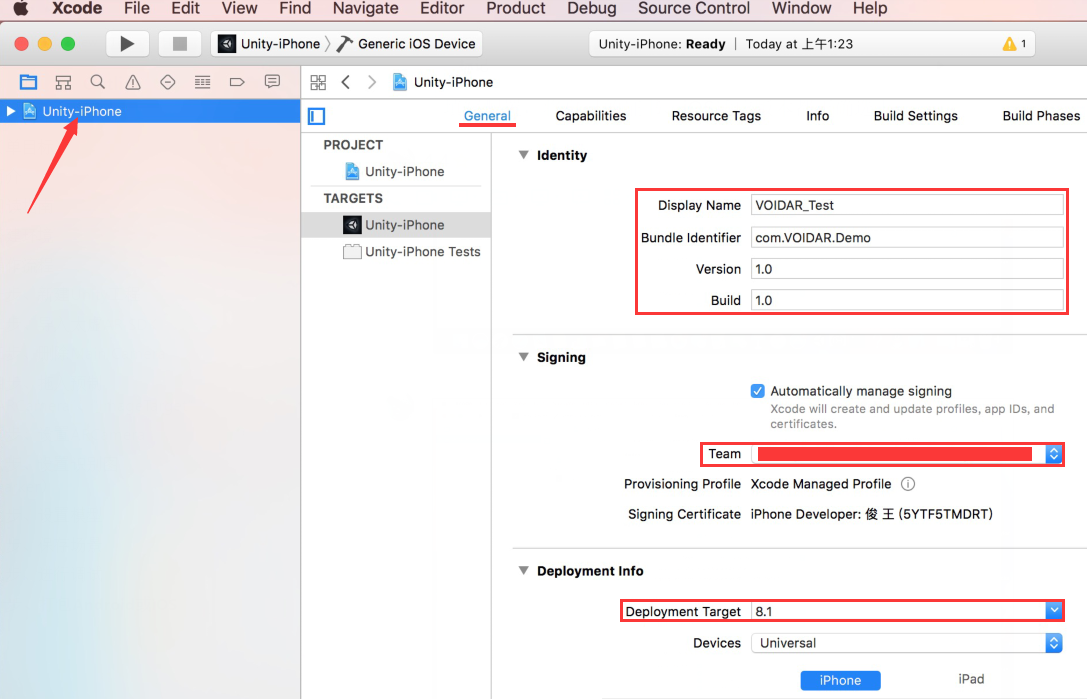

Click [ Unity-iPhone ] on the left side, config the parameters as below or by your customization:
- Display Name = "VOIDAR_Test"
- Bundle Identifier = "com.VOIDAR.Demo"
- Version = "1.0"
- Build = “1.0”
- Team = “Your Certificate”
- Deployment Target = “8.1”

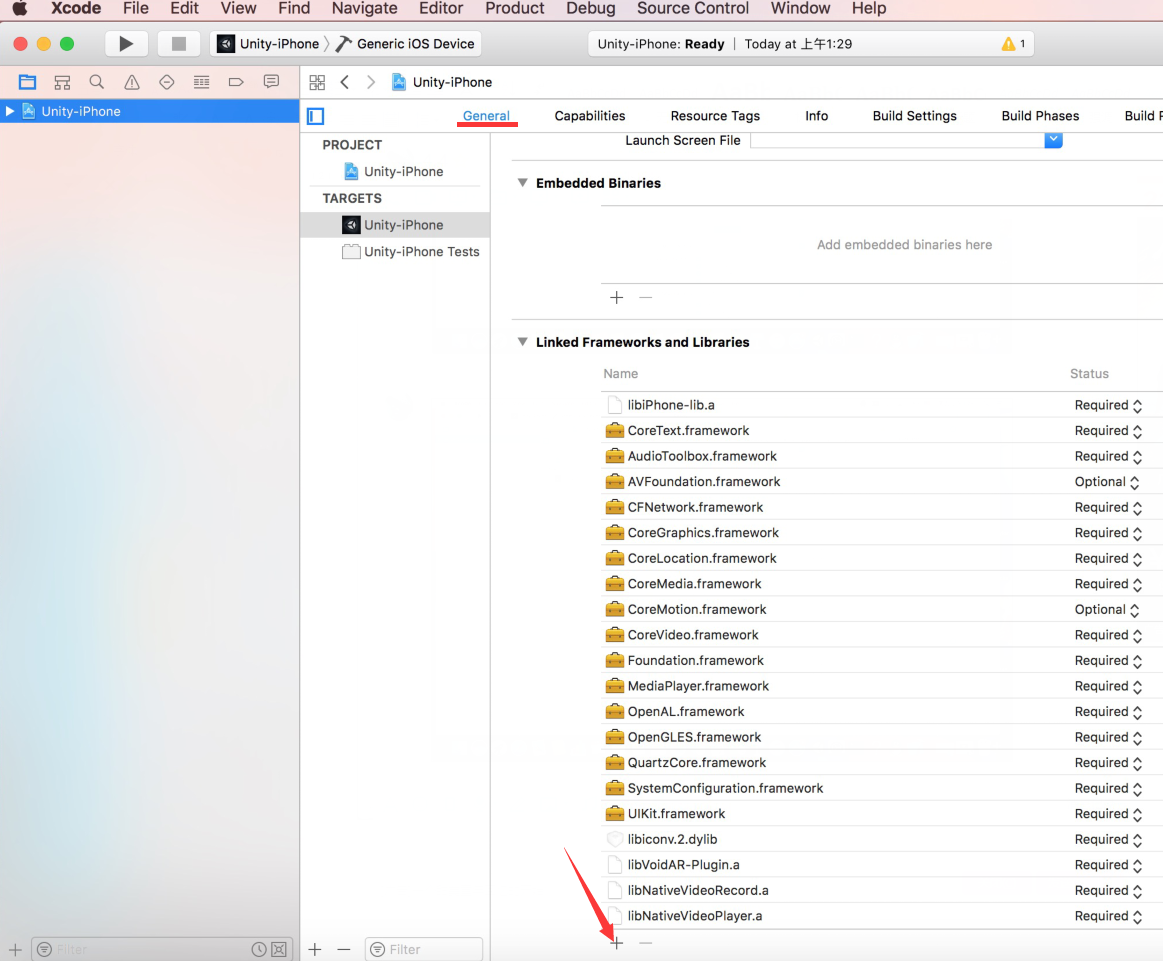

Select General tag and scroll down, click the "+" in the "Linked Frameworks and Libraries".

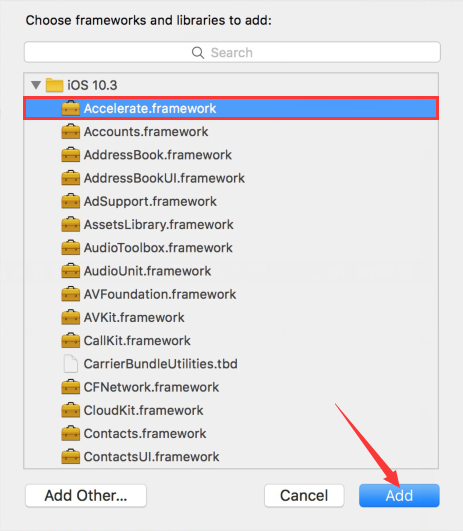

Select “Accelerate.framework” from the prompted window, and click [ Add ].

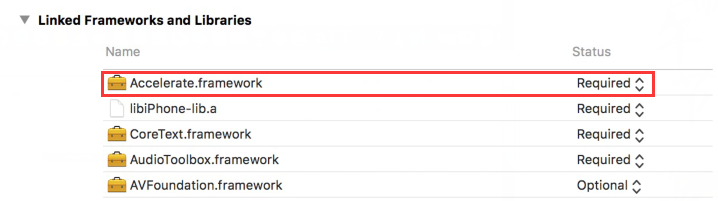

After doing that, you will see “Accelerate.framework” from the list of "Linked Frameworks and Libraries" as below:
Add camera usage privacy.

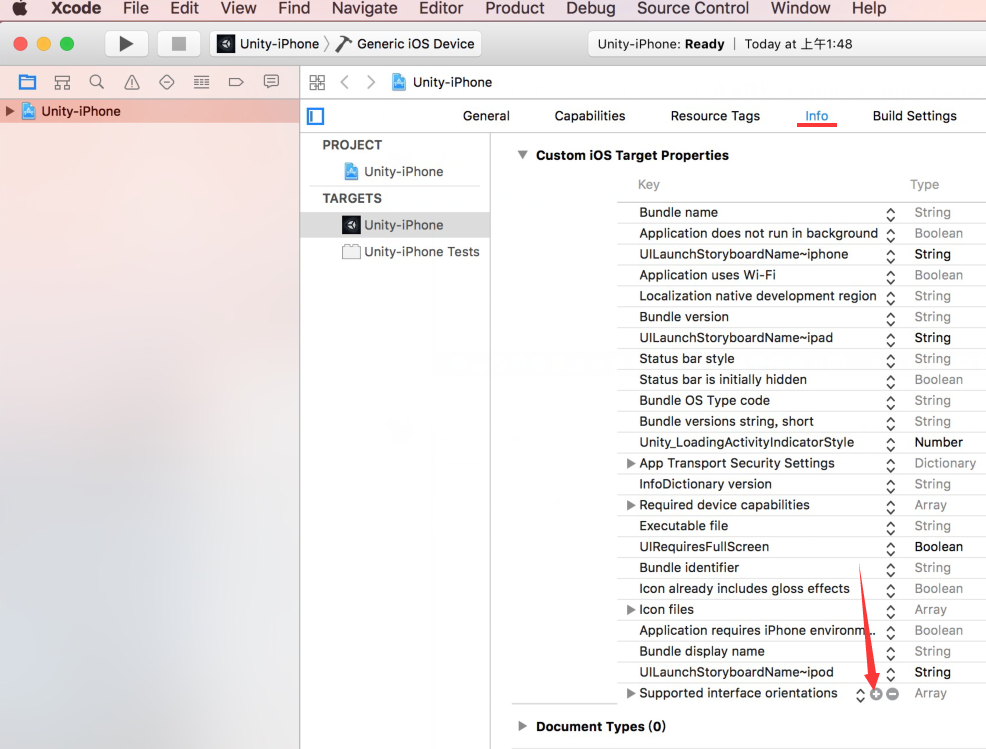

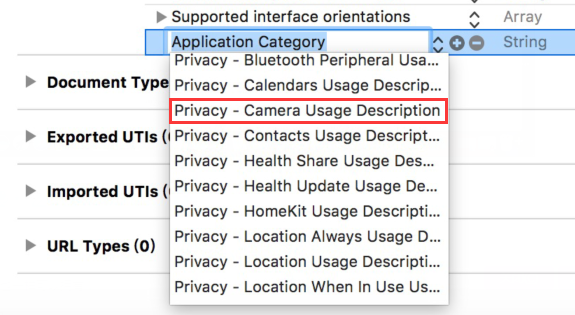

Select “Info” tag, click the "+" below the "Supported interface orientations". Select “Privacy - Camera Usage Description” in the prompting list.

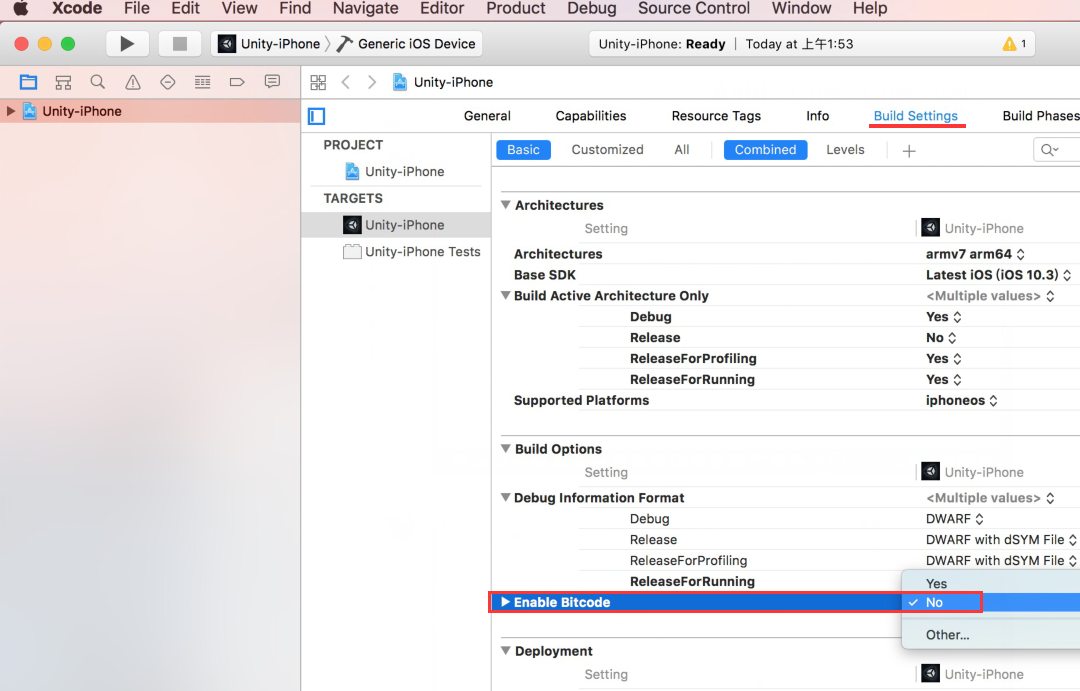

Select ”Build Settings” tag, set Enable Bitcode = “No”.

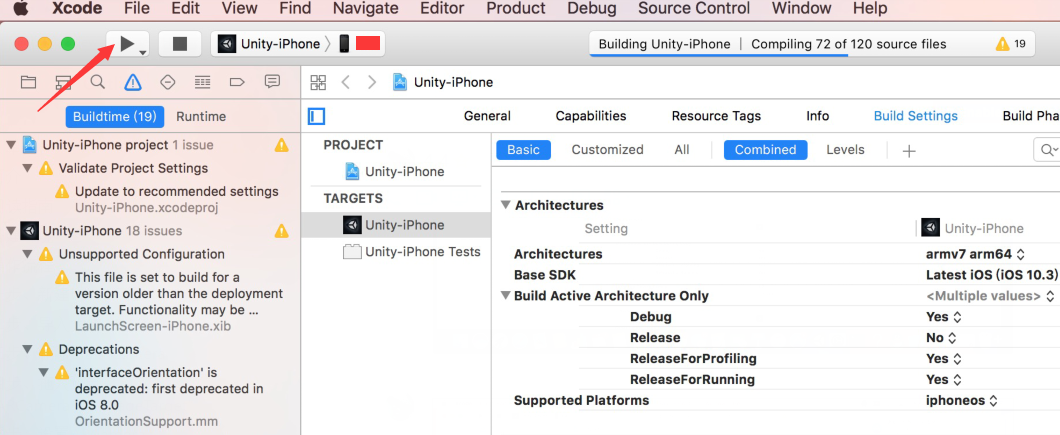

Connect iphone or ipad to the Mac device, Click [ Run ].
After building, there will be an application(“VOIDAR_Test”) built into your iphone or ipad.
The iOS build is done.
By here, VOID CLOUD ( VideoPlayback ) process is done.
